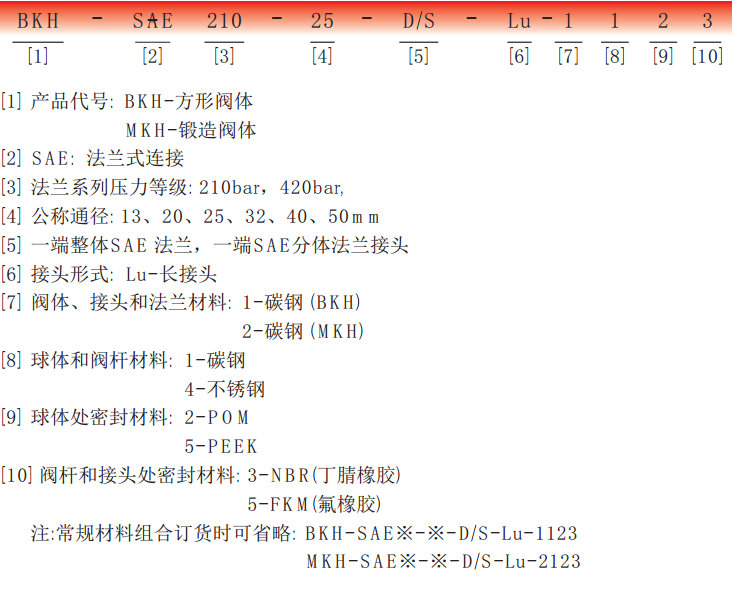

Precautions for use and ordering

(1) Nominal diameter 20mm, flange pressure level 210bar, conventional material, one end SAE integral flange, one end SAE split flange long joint, surface environmentally friendly zinc,

Model: BKH-SAE210-20-D/S-Lu environmentally friendly zinc: nominal diameter 50mm, flange pressure level 420bar, conventional material, one end SAE integral flange, one end SAE split flange long joint, surface environmentally friendly zinc,Model: MKH-SAE420-50-D/S Lu Environmental friendly Zinc:

(2) MKH-SAE210-32-D/S Lu-M12, which is not suitable for new designs, is generally selected as MKH-SAE210-32-D/S Lu-M10:2)

(3) Handle and О O-ring valves are provided.
