Precautions for use and ordering

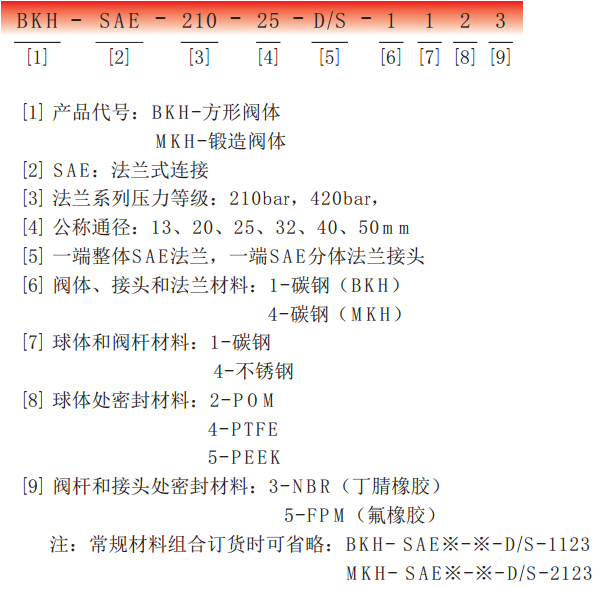

(1) Nominal diameter 20mm, flange pressure level 210ba, conventional material, one end SAE integral flange and one end SAE split flange joint, surface environmentally friendly zinc, model: BKH-SAE210-20-D/S environmentally friendly zinc: - end SAE integral flange and one end SAE split flange joint, surface environmentally friendly zinc, model: MKH-SAE420-50-D/S environmentally friendly zinc, nominal diameter 50mm, flange pressure level 420bar, conventional material,

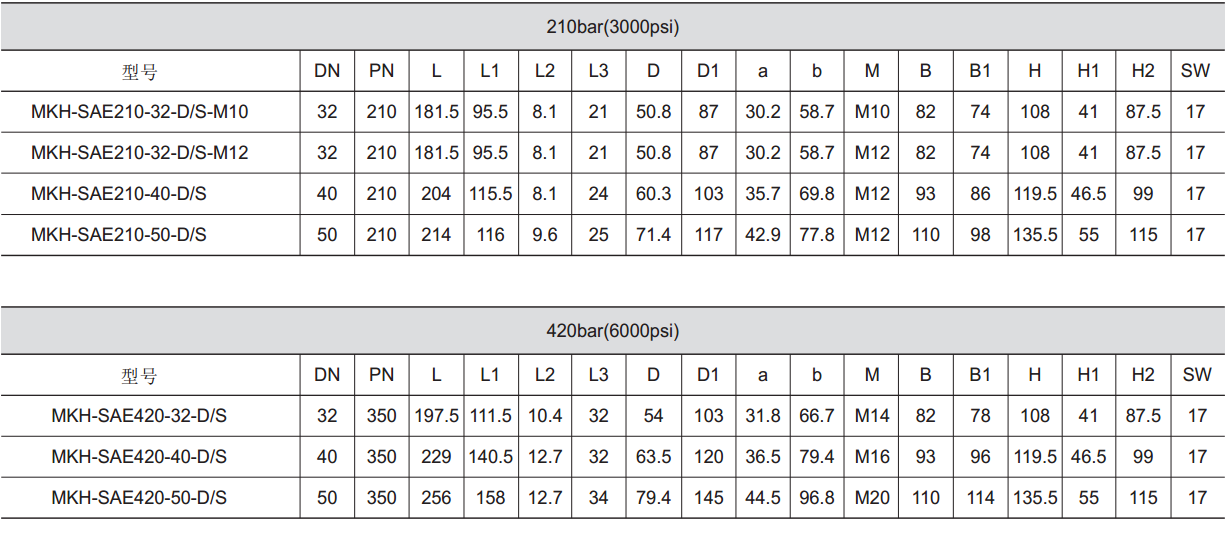

(2) MKH-SAE210-32-D/S-M12, which is not suitable for new designs, is generally selected as MKH-SAE210-32-D/S-M10; (3) Handle and O-ring valve provided.
